Test cases

The paymentStatus in the test cases below depends on the configuration of your account and indicates the status came after a consumer had fully completed all the steps during a redirection.

Test cards can be used with any valid expiry date and CVV in our pre-production environment.

3D Secure version 2

All the below test cases can be executed using the below Create Payment example, by simply changing the cardNumber and the paymentProductId based on the tables below.

Create Payment request 3D Secure version 2

{
  "cardPaymentMethodSpecificInput": {
    "card": {
      "cvv": "200",
      "cardNumber": "4012000033330026",
      "expiryDate": "1228",
      "cardholderName": "Wile E. Coyote"
    },
    "isRecurring": false,
    "paymentProductId": 1,
    "transactionChannel": "ECOMMERCE",
    "threeDSecure": {
      "challengeIndicator": "no-preference",
      "challengeCanvasSize": "600x400",
      "authenticationFlow": "browser",
      "redirectionData": {
        "returnUrl": "https://hostname.myownwebsite.url"
      }
    }
  },
  "order": {
    "amountOfMoney": {
      "currencyCode": "EUR",
      "amount": 100
    },
    "customer": {
      "accountType": "none",
      "billingAddress": {
        "countryCode": "NL"
      },
      "device": {
        "acceptHeader": "texthtml,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8",
        "browserData": {
          "colorDepth": 24,
          "javaEnabled": false,
          "screenHeight": "1200",
          "screenWidth": "1920"
        },
        "ipAddress": "123.123.123.123",
        "locale": "en-US",
        "userAgent": "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_14_4) AppleWebKit/605.1.15 (KHTML, like Gecko) Version/12.1 Safari/605.1.15",
        "timezoneOffsetUtcMinutes": "420"
      },
      "locale": "en_US",
      "merchantCustomerId": "1234"
    },
    "references": {
      "merchantOrderId": 123456,
      "merchantReference": "vlSjO1XpvQgF3EYNvpA6rUDymoY6yD"
    }
  }
}

The behavior of the test cases is defined based on the cardNumber used in the test case. The value of the challengeIndicator is not taken into account by our simulator.

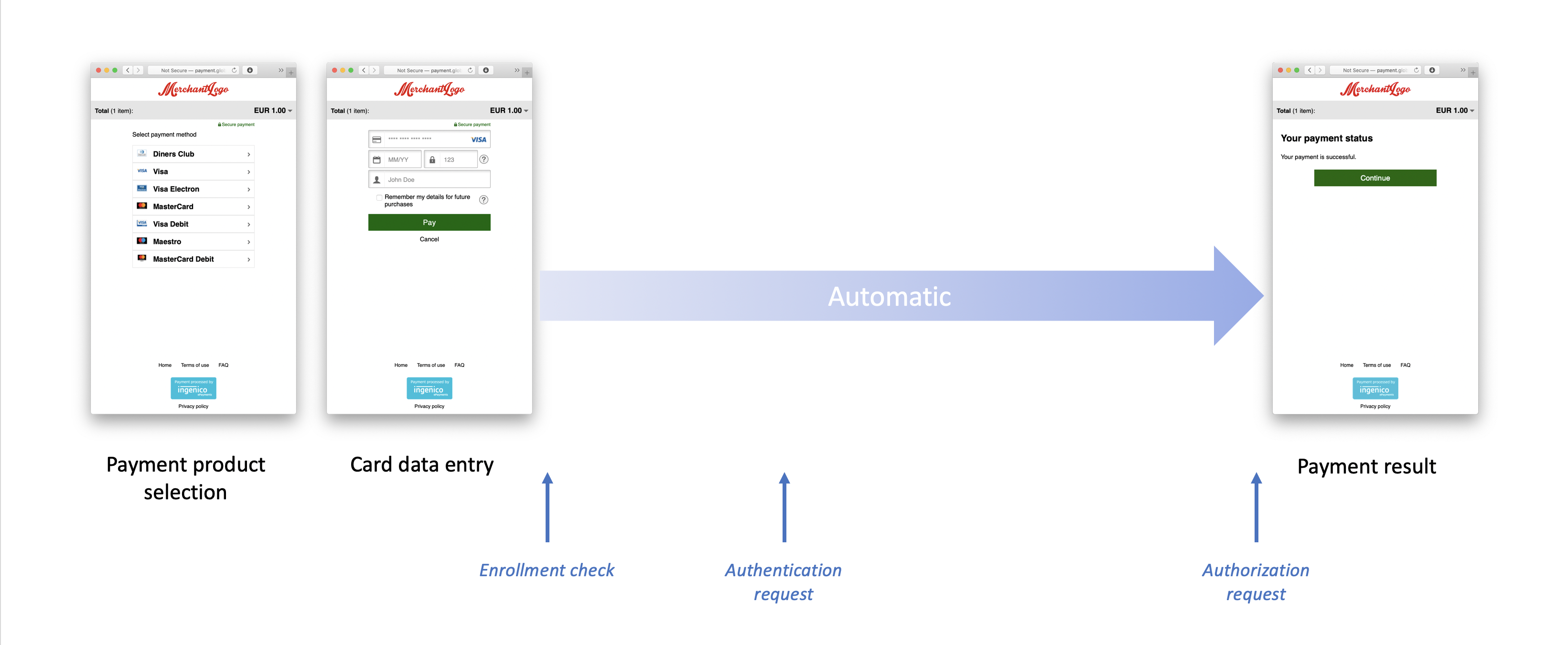

Frictionless without MethodURL

Visa (1)	Mastercard (3)	American Express (2)	paymentStatus	Description
4012000033330026	5200000091444270	371449635398431	PENDING_APPROVAL	Transaction Fully Authenticated and Authorized
4012004040524514	5200008932030109	344822942822422	PENDING_APPROVAL	Authentication Attempted and Authorized
4012001775445550	5200008192910263	348058683731797	REJECTED	Authentication Failed (not possible to proceed to Authorization)
4012003360932265	5200008849448782	371402182236181	REJECTED	Authentication Rejected by the issuer (not possible to proceed to Authorization)
4012000305337014	5200001683397918	343477454564812	PENDING_APPROVAL	Authentication Unavailable - Authorization performed based on your account settings
4012002046769026	5200007546856545	347726193801364	PENDING_APPROVAL	Fall Back to 3D v1 - Transaction Fully Authenticated and Authorized

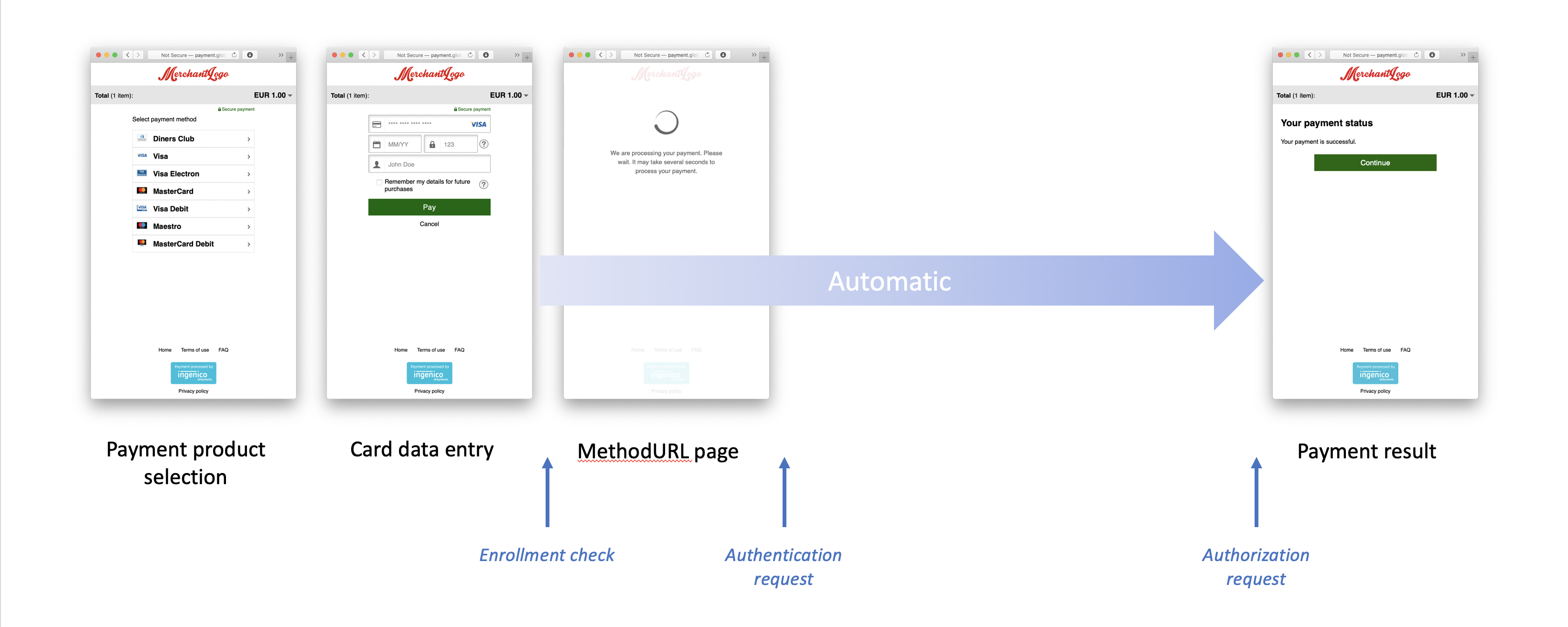

Frictionless with MethodURL

Visa (1)	Mastercard (3)	American Express (2)	paymentStatus	Description
4567350000427977	5200007937518480	378902817729834	PENDING_APPROVAL	Transaction Fully Authenticated and Authorized
4012005727315985	5200007782116869	347764182815475	PENDING_APPROVAL	Authentication Attempted and Authorized
4012001653098885	5200003094063303	341162979280670	REJECTED	Authentication Failed (not possible to proceed to Authorization)
4012001386109959	5200003833404966	340594177068468	REJECTED	Authentication Rejected by the issuer (not possible to proceed to Authorization)
4012005306641421	5200001680077224	378662840253679	PENDING_APPROVAL	Authentication Unavailable - Authorization performed based on your account settings

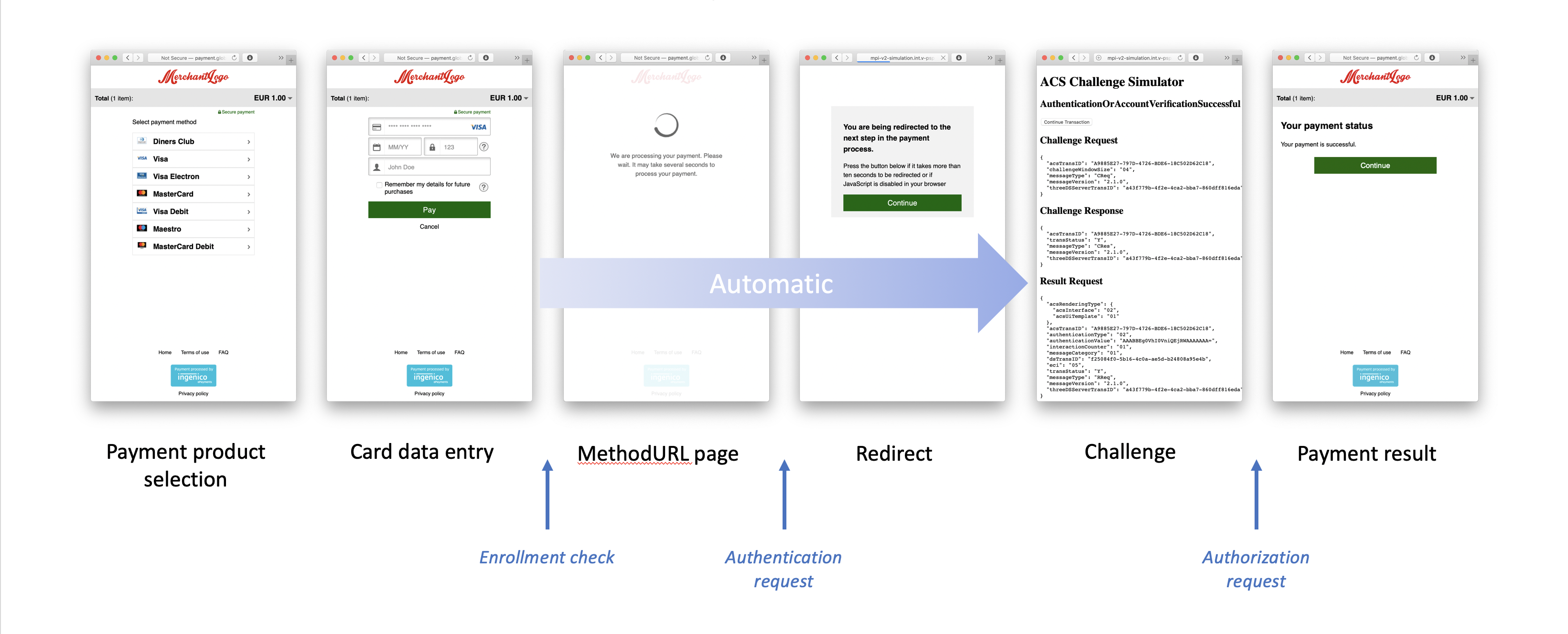

Challenge without MethodURL

3dv2-challenge

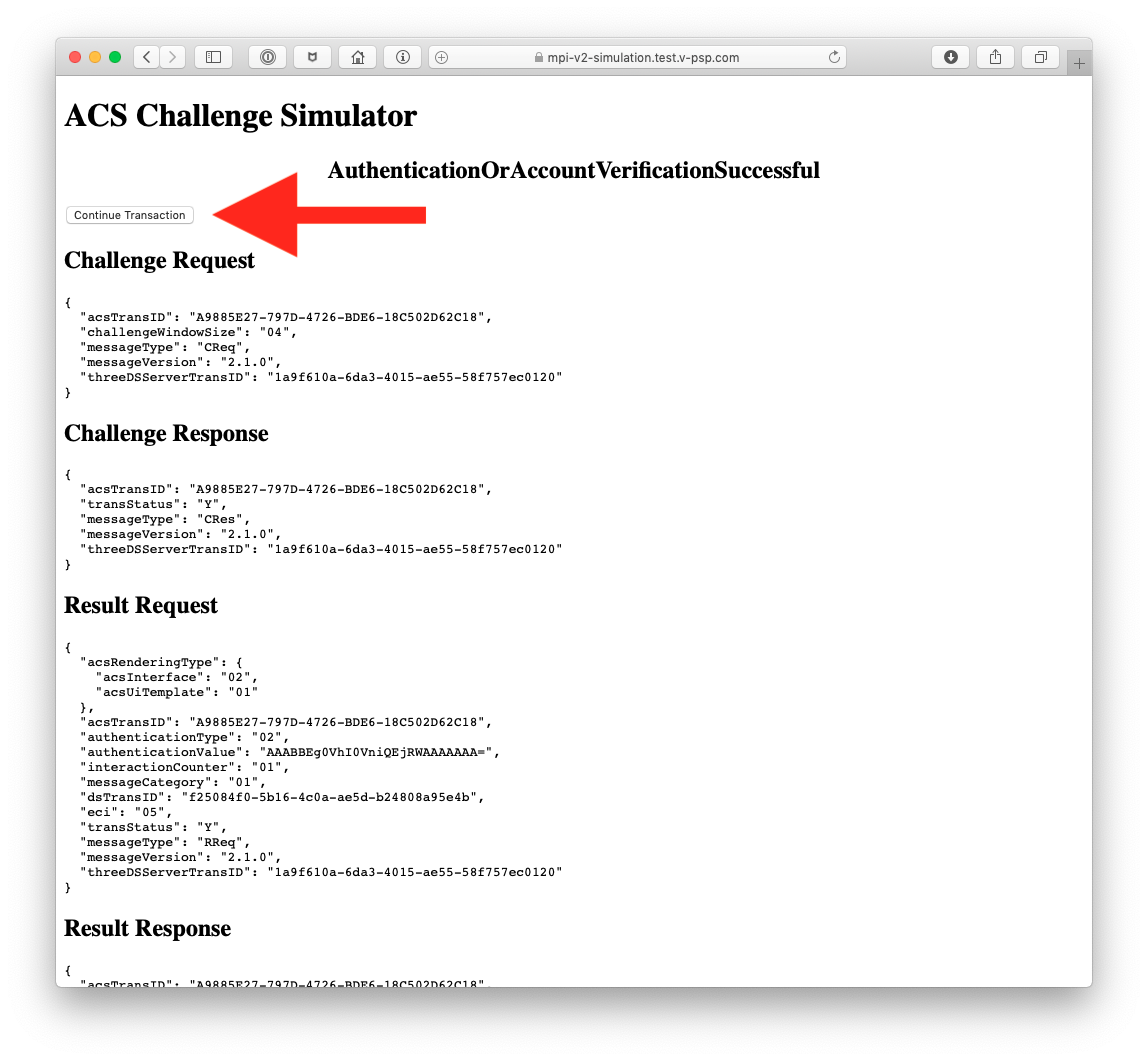

For the testing of the 3D Secure flows we make use of a simulator. This simulator presents a page with some technical data and does not reflect what a consumer will see during the actual authentication flow. The page has a Continue Transaction button at the top of the page to continue the flow. By clicking this button the user is then redirected to the next step in the checkout process. Please see below a sample of this page with the Continue Transaction button highlighted.

3-D Secure version 1 ACS Simulator screenshot

Visa (1)	Mastercard (3)	American Express (2)	paymentStatus	Description
4012007153923001	5200003143732874	378069803818698	PENDING_APPROVAL	Transaction Fully Authenticated and Authorized
4012007161850527	5200006177946005	346455459929781	REJECTED	Authentication Failed (not possible to proceed to Authorization)
4012005616165343	5200006952643892	372737175320289	PENDING_APPROVAL	Authentication Unavailable - Authorization performed based on your account settings

Challenge with MethodURL

Visa (1)	Mastercard (3)	American Express (2)	paymentStatus	Description
4012009668289936	5200008448083808	343565236909840	PENDING_APPROVAL	Transaction Fully Authenticated and Authorized
4012009341147907	5200000501098096	371035863540263	REJECTED	Authentication Failed (not possible to proceed to Authorization)
4012009320386567	5200008197176324	343338595300898	PENDING_APPROVAL	Authentication Unavailable - Authorization performed based on the settings of your account
